Highlighted Features
- 12″ I-Beam Gooseneck and Main Rails
- Pierced Frame, 3″ Structural Channel Cross-Members

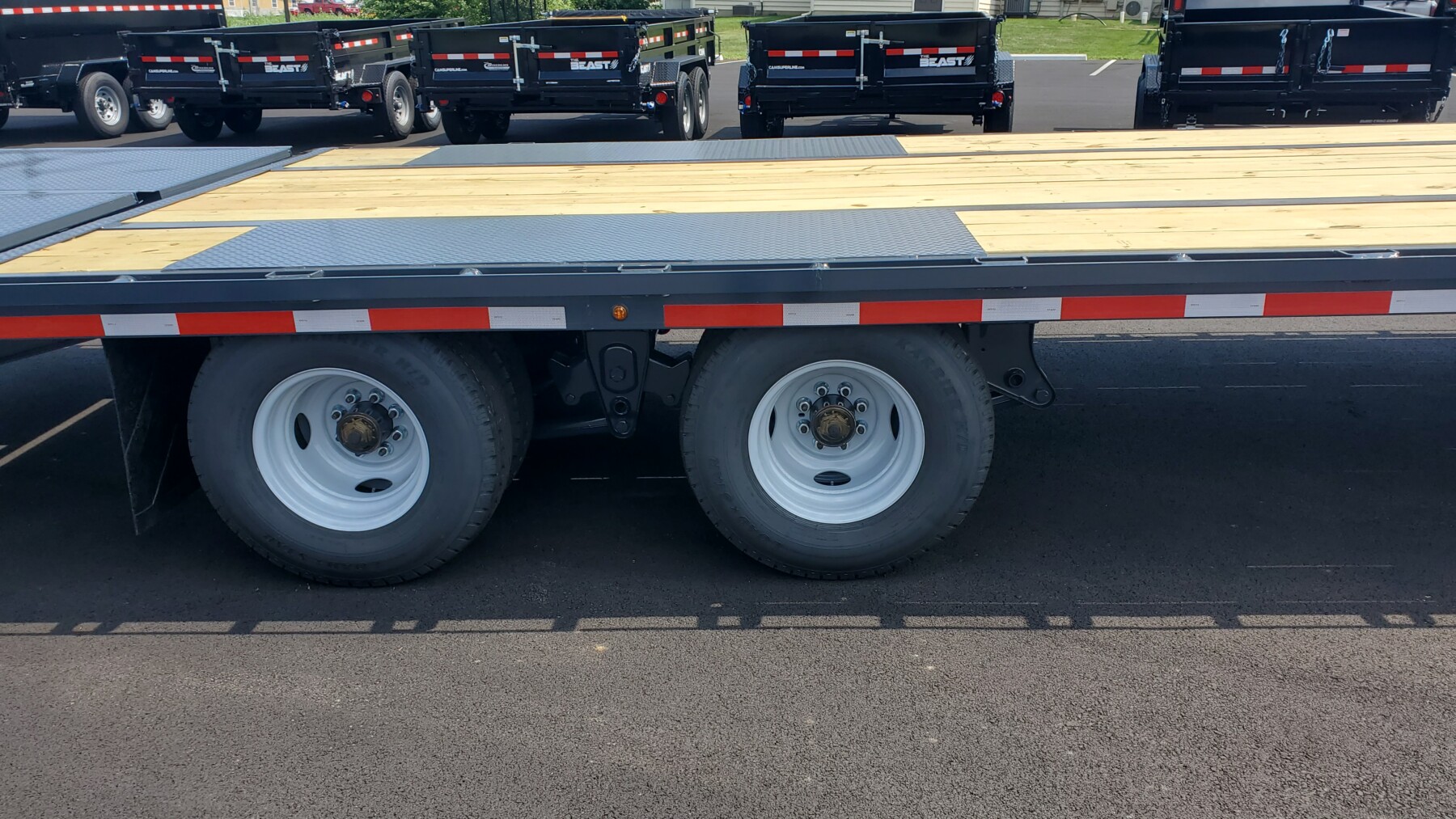

- High Quality Dexter Oil Bath Axles

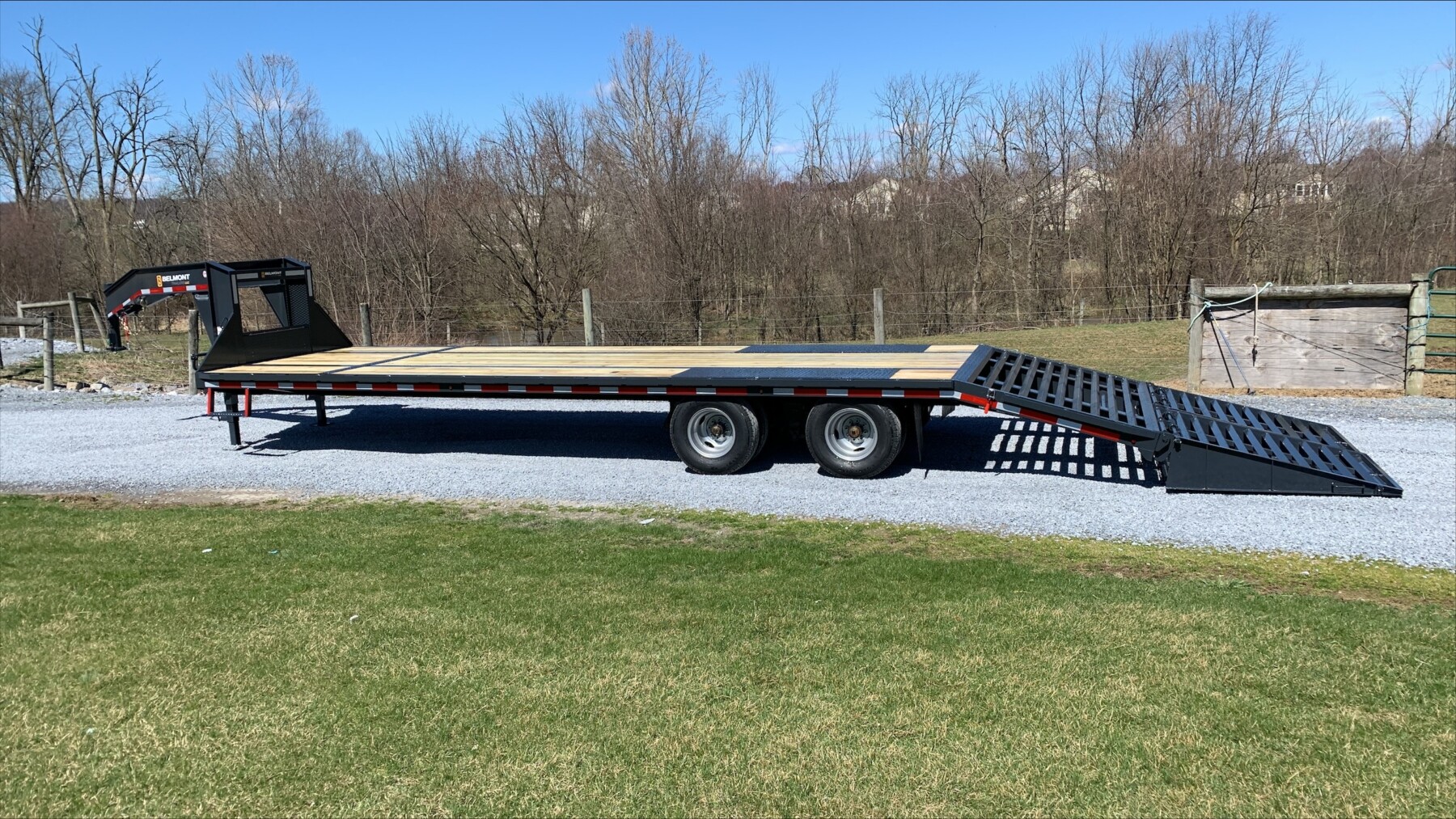

- 5′ Self-Cleaning Beavertail with Full-Width Wedge Ramps
Standard Features
- Electric self-adjusting brakes

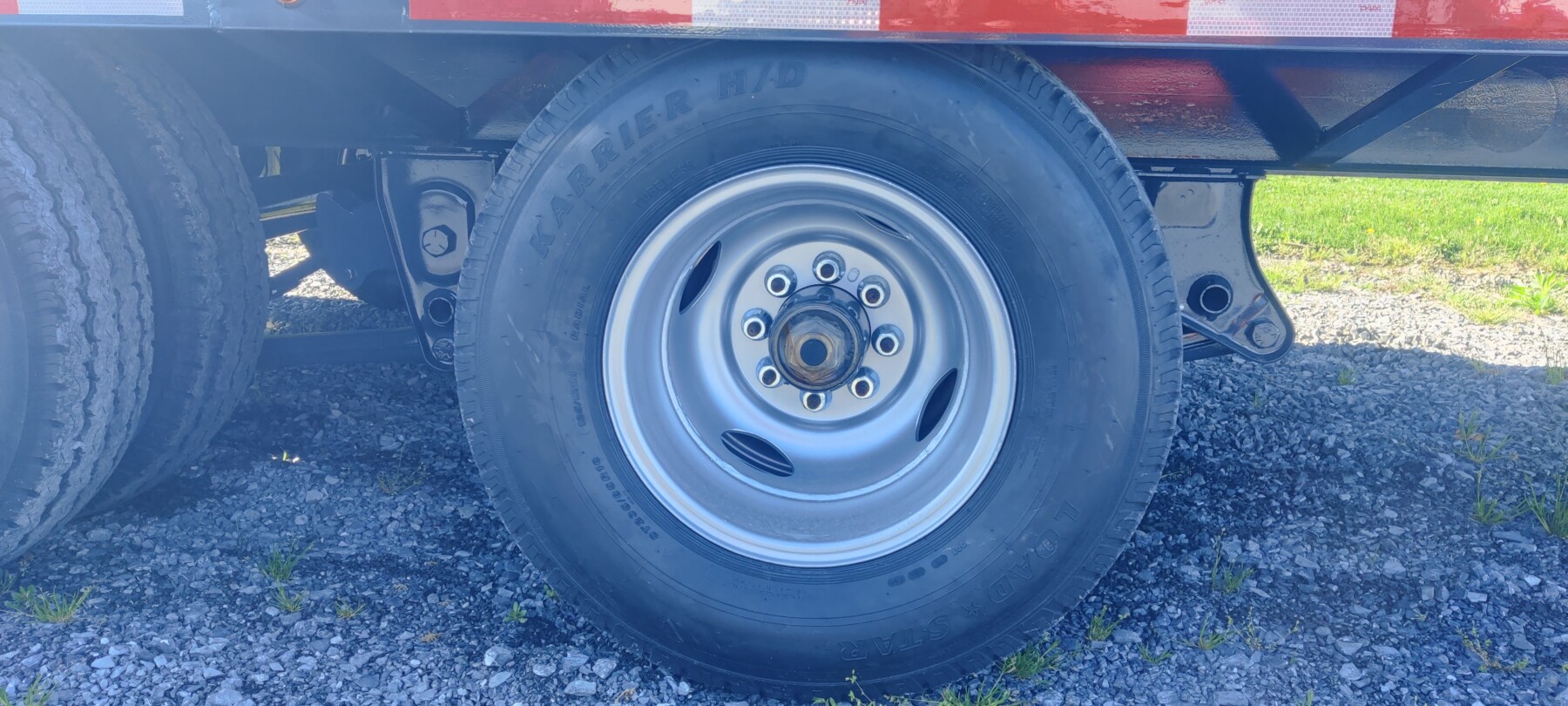

- ST235/85R16 range “E” radial tires
- 8 Bolt 16″ mod wheels
- High-quality urethane paint primer and top coat
- Pierced frame, 3″ Structural Channel Cross-Members
- Full length Rub Rail with Stake Pockets and Chain Posts

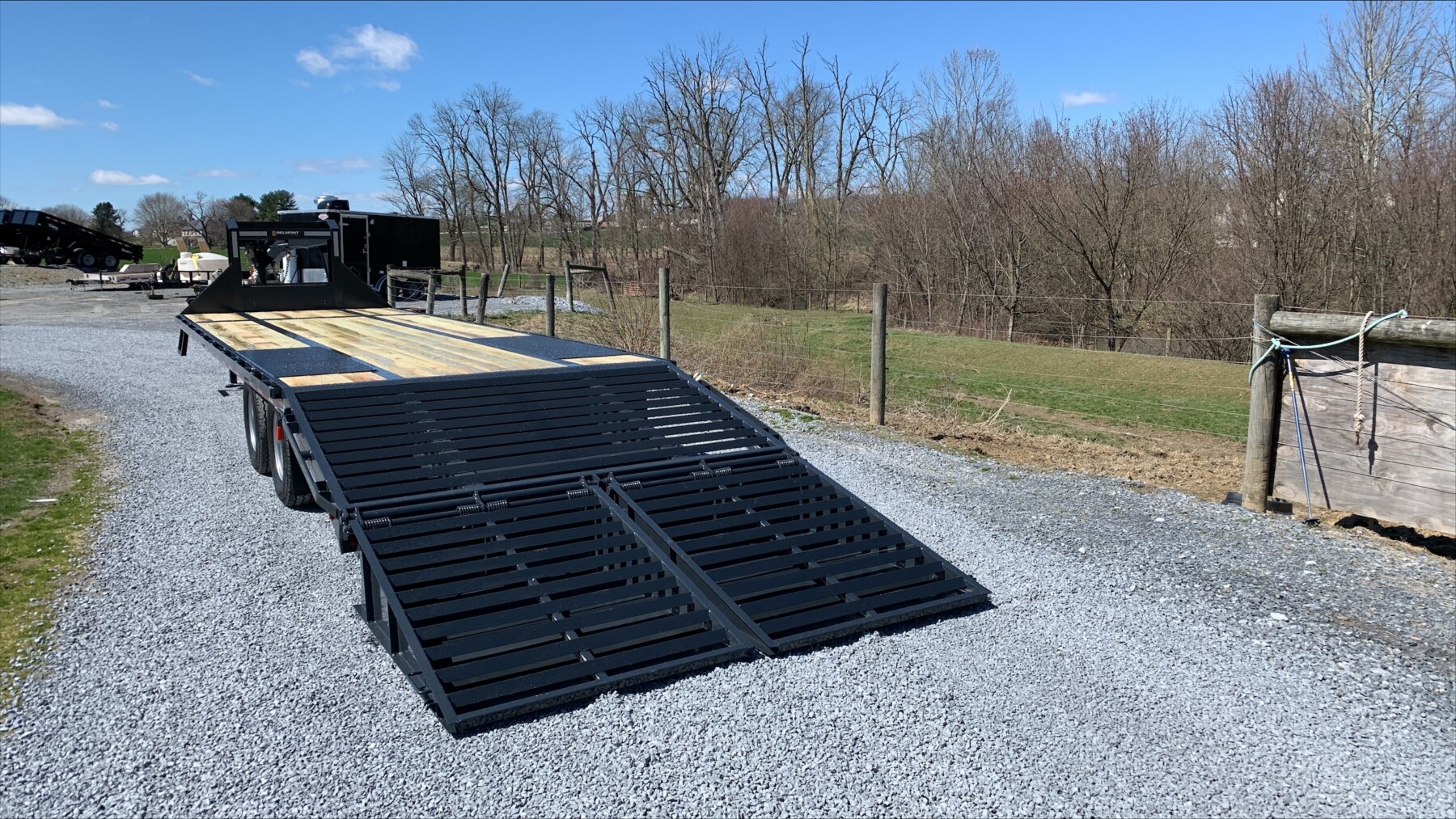

- 5′ Self Cleaning Beavertail with Full-Width Wedge Ramps
- Dual 12K Sidewind Drop Leg Jacks
- 2⁵/₁₆” Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2” X 8” Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED lights

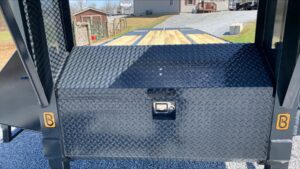

- Front lockable toolbox
- Spare Tire Mount Inside Gooseneck
- Front steps
Available Models
All Lengths Below Include 5′ Beavertail (Example: 96″ x 20′ is 15′ Flat + 5′ Beavertail)
20K GVW:
- GN20-20K: 96″ x 20′, 20K GVW (5,475 Empty Weight)
- GN25-20K: 96″ x 25′, 20K GVW (6,050 Empty Weight)
- GN30-20K: 96″ x 30′, 20K GVW (6,550 Empty Weight)
- GN35-20K: 96″ x 35′, 20K GVW (7,100 Empty Weight)
24K GVW:
- GN25-24K: 96″ x 25′, 24K GVW (6,900 Empty Weight)
- GN30-24K: 96″ x 30′, 24K GVW (7,100 Empty Weight)
- GN35-24K: 96″ x 35′, 24K GVW (7,415 Empty Weight)
- GN25-24K: 96″ x 25′, 24K GVW (8,390 Empty Weight)
Optional Features
- Bumper Pull A-frame hitch ILO Gooseneck
- Deck On Top Of Gooseneck, 8′ Wide x 7′ Long
- Total Flat Deck – No Ramps or Beavertail
- Spare Tire and Wheel
- Hydraulic Disc or Drum Brakes
- 12K 2-Speed Jacks
- 12K Dual Hydraulic Jacks
- Additional LED Lights
- Winch Mount (Deck or Gooseneck Mount)
- 4’’ Straps on Sliding Winch Track
- D-Rings
- Underbody Mounted Toolboxes
- Non Standard Colors
- Hot Dipped Galvanized Finish
