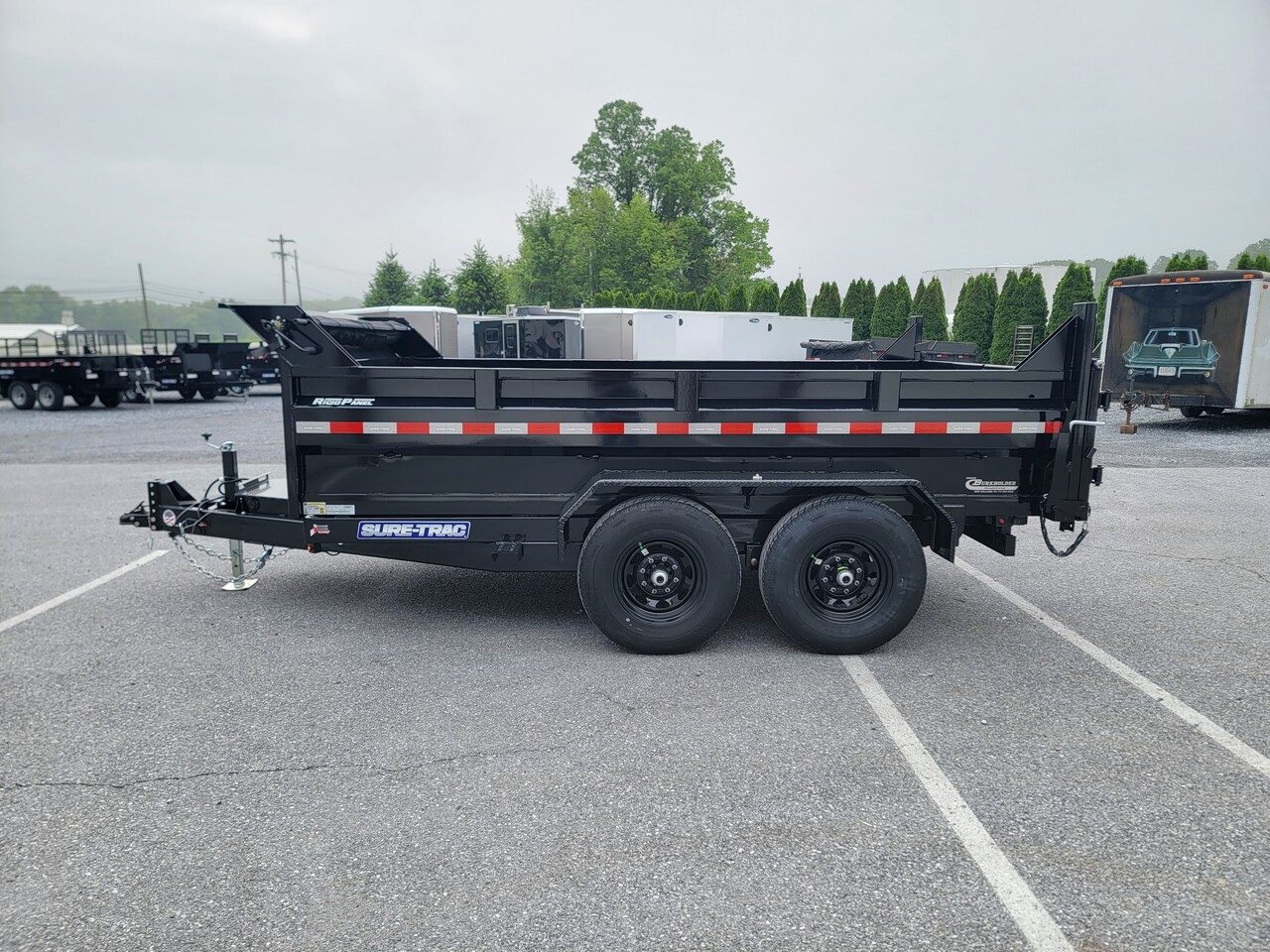

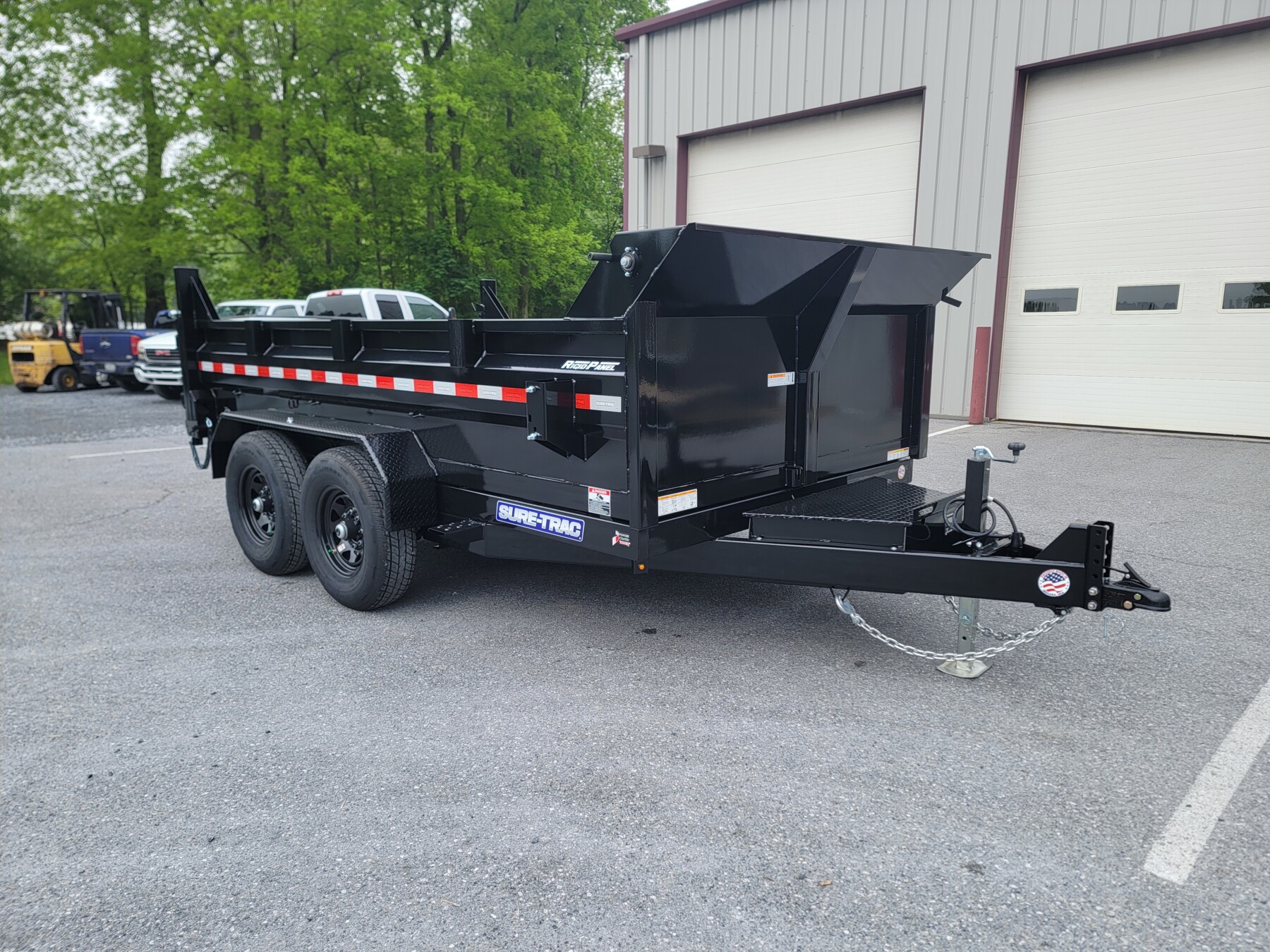

Sure-Trac: HD Low Profile Dump


**Scroll Down to see Pictures and Video!**

Sizes and Weights:

  • 7′ Wide x 12′ Long (12K and 14K GVW)
  • 7′ Wide x 14′ Long (14K and 16K* GVW)
  • 7′ Wide x 16′ Long (14K and 16K* GVW)
  • *16K Only available in Scissor Hoist Models

Highlighted Features:

  • Integrated Side Body Stiffening System
  • Integrated Tarp Mount
  • Underbody Secure Tool Storage
  • Combo Barn Door Spreader Gate with Cambar
  • All LED Lights
  • HD Slipper Springs
  • Sealed Brake Connections
  • Ramps (Stored Underneath Bed)

Standard Features:

  • 82″ Inside Bed Width
  • Welded Tubular Steel Main Frame
  • 10 Gauge Floor
  • (4) Wheel Electric Brakes
  • Slipper Spring Axles with Easy Lube Hubs

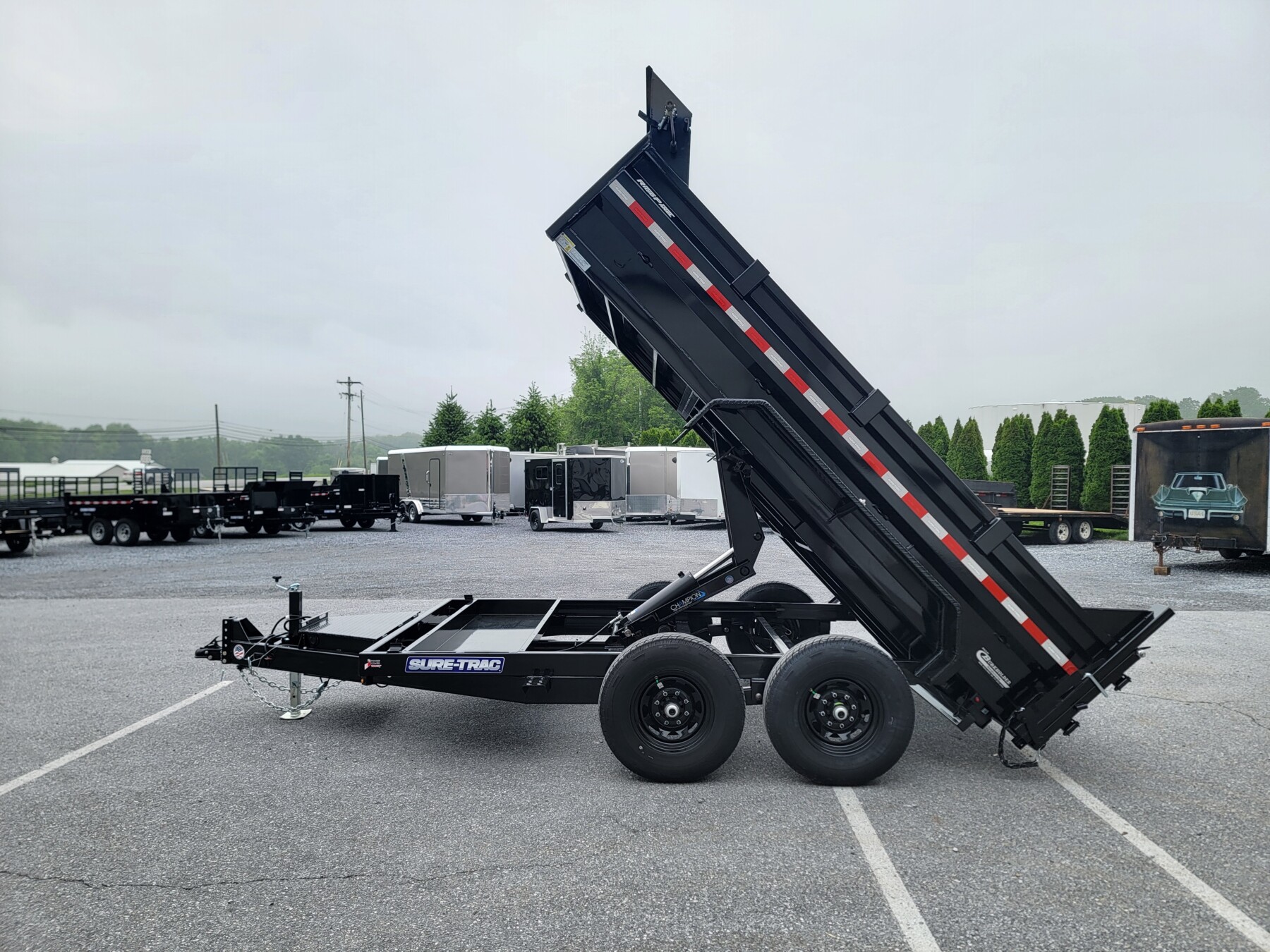

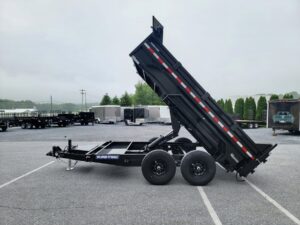

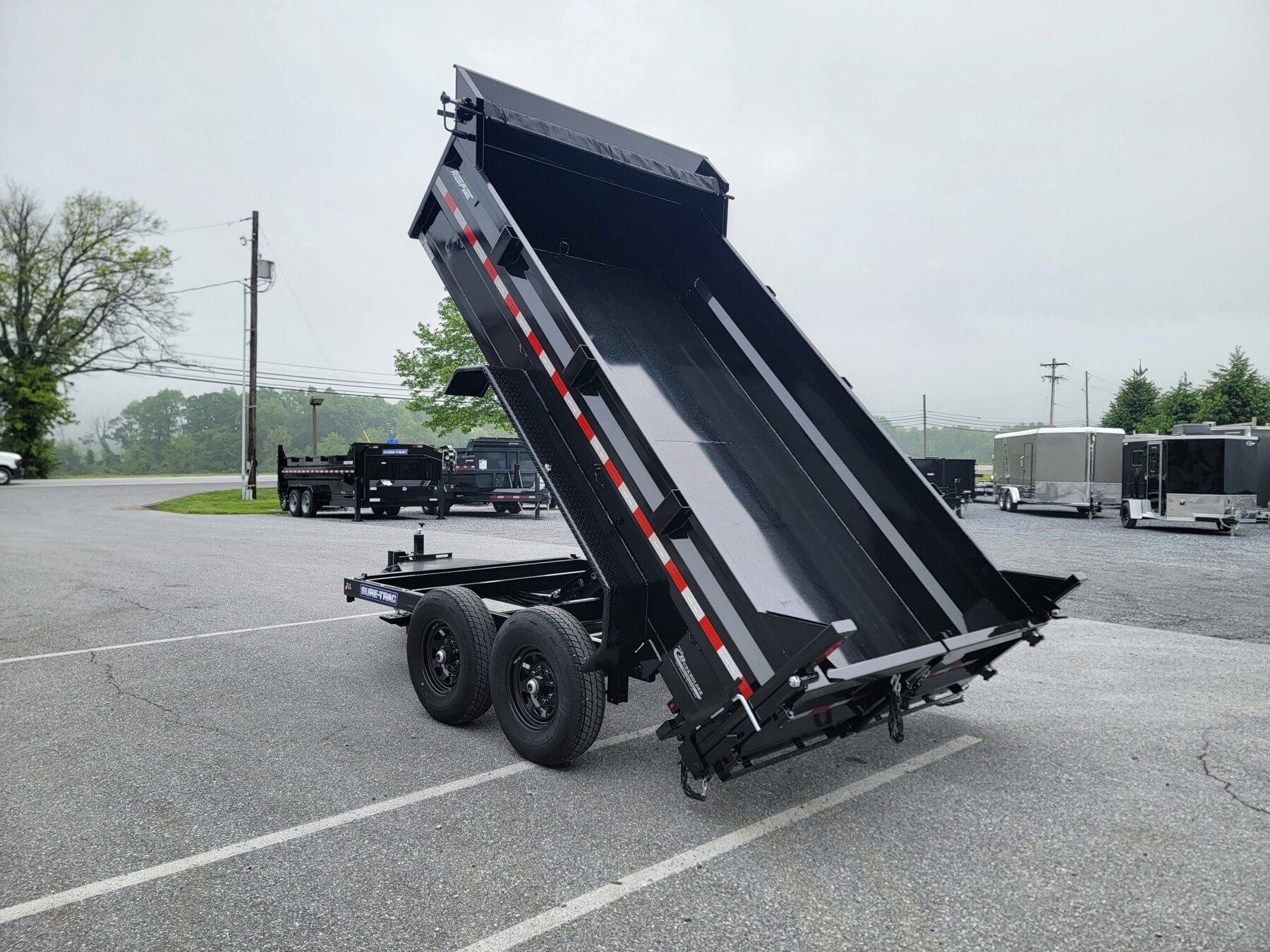

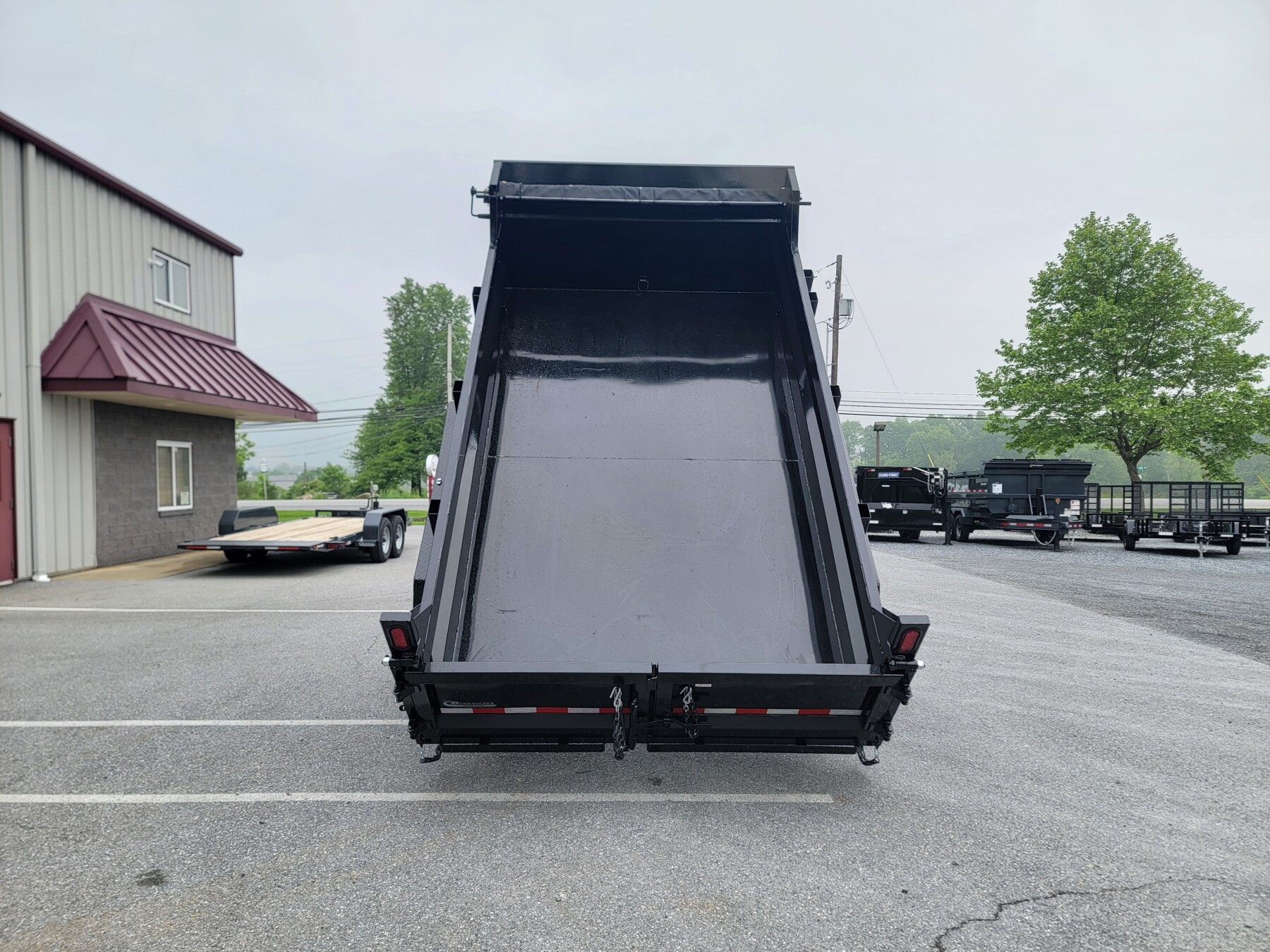

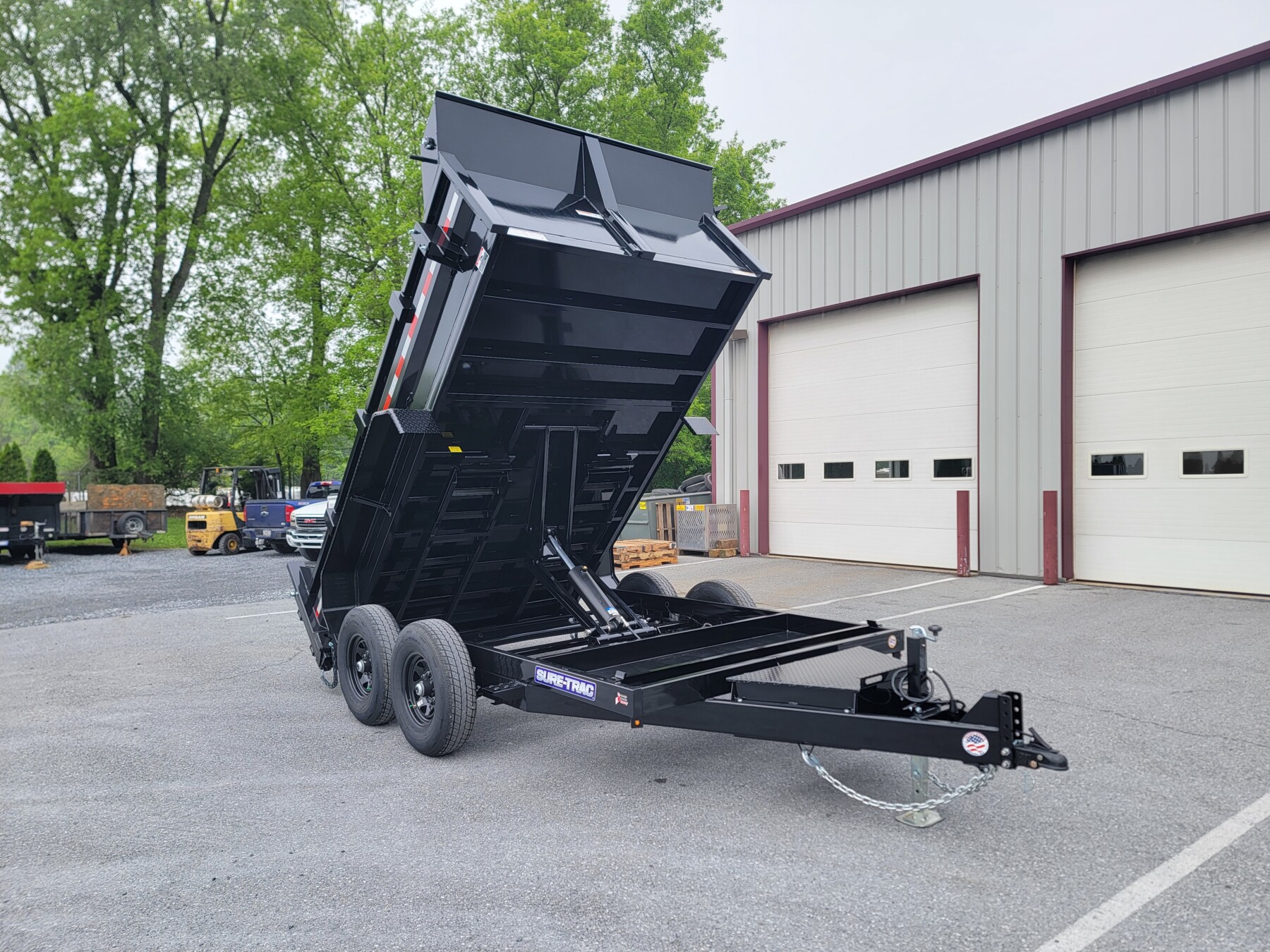

  • 45 Degree Dump Angle
  • Power Up, Power Down on Dual Ram Units
  • Power Up, Gravity Down on Scissor and Telescopic Units
  • (5) D-Rings
  • (3) Stake Pockets Per Side
  • Stabilizer Jack Receivers (Jacks Optional)
  • Side Steps
  • Ramps (Stored Underneath Bed)
  • Adjustable 2 5/16″ Coupler
  • Spare Tire Bracket

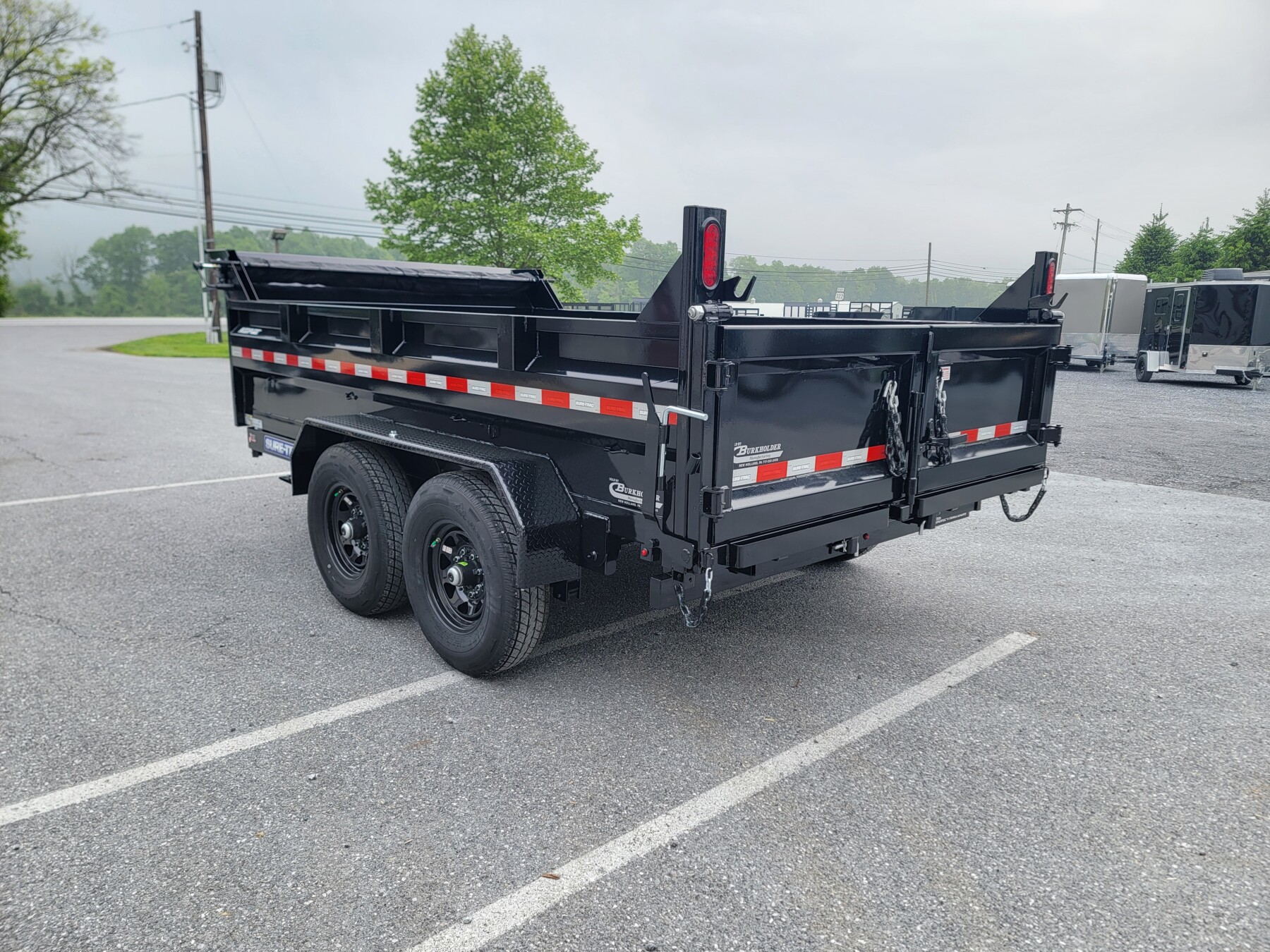

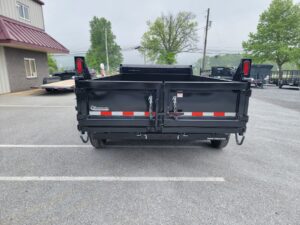

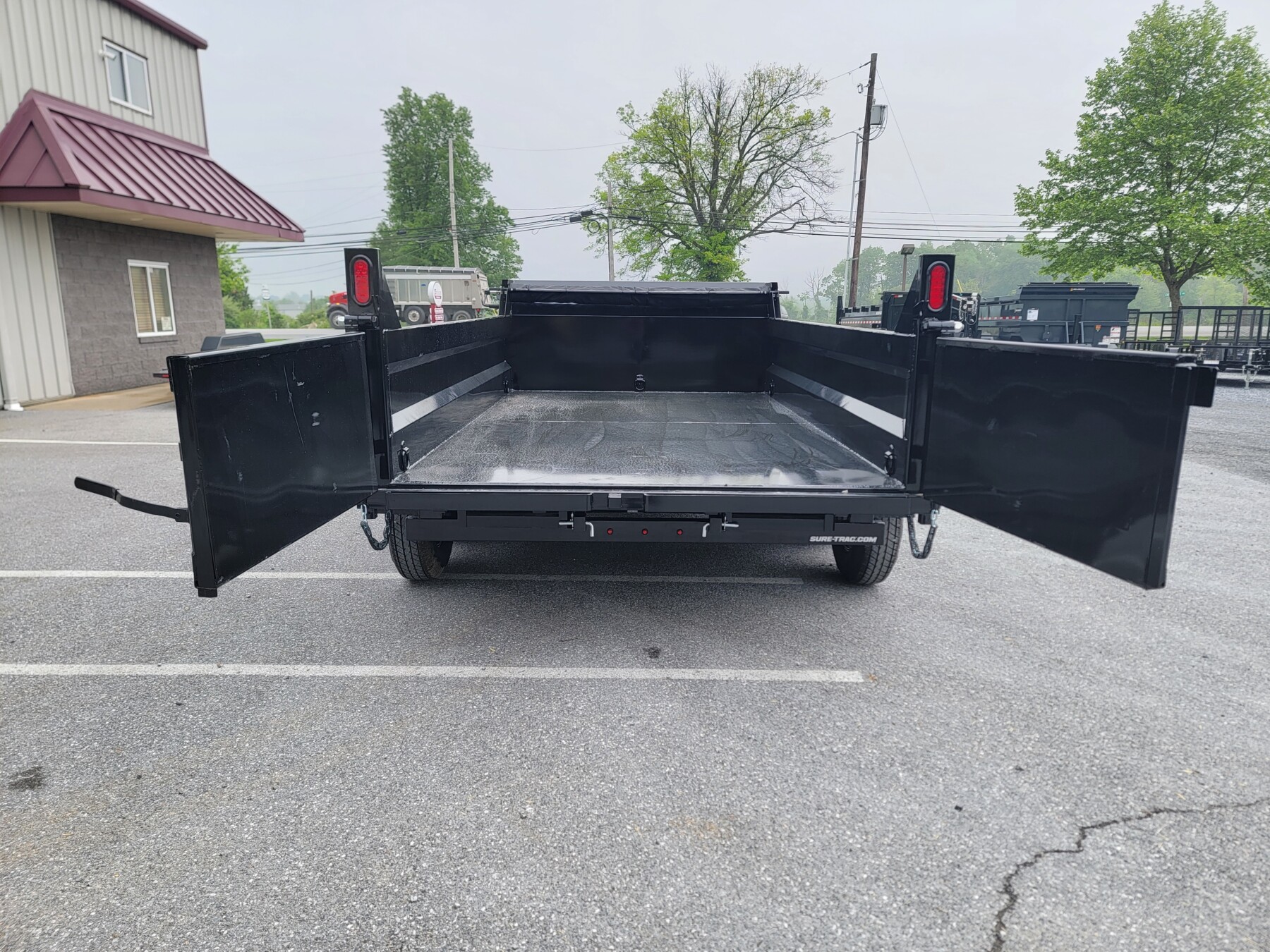

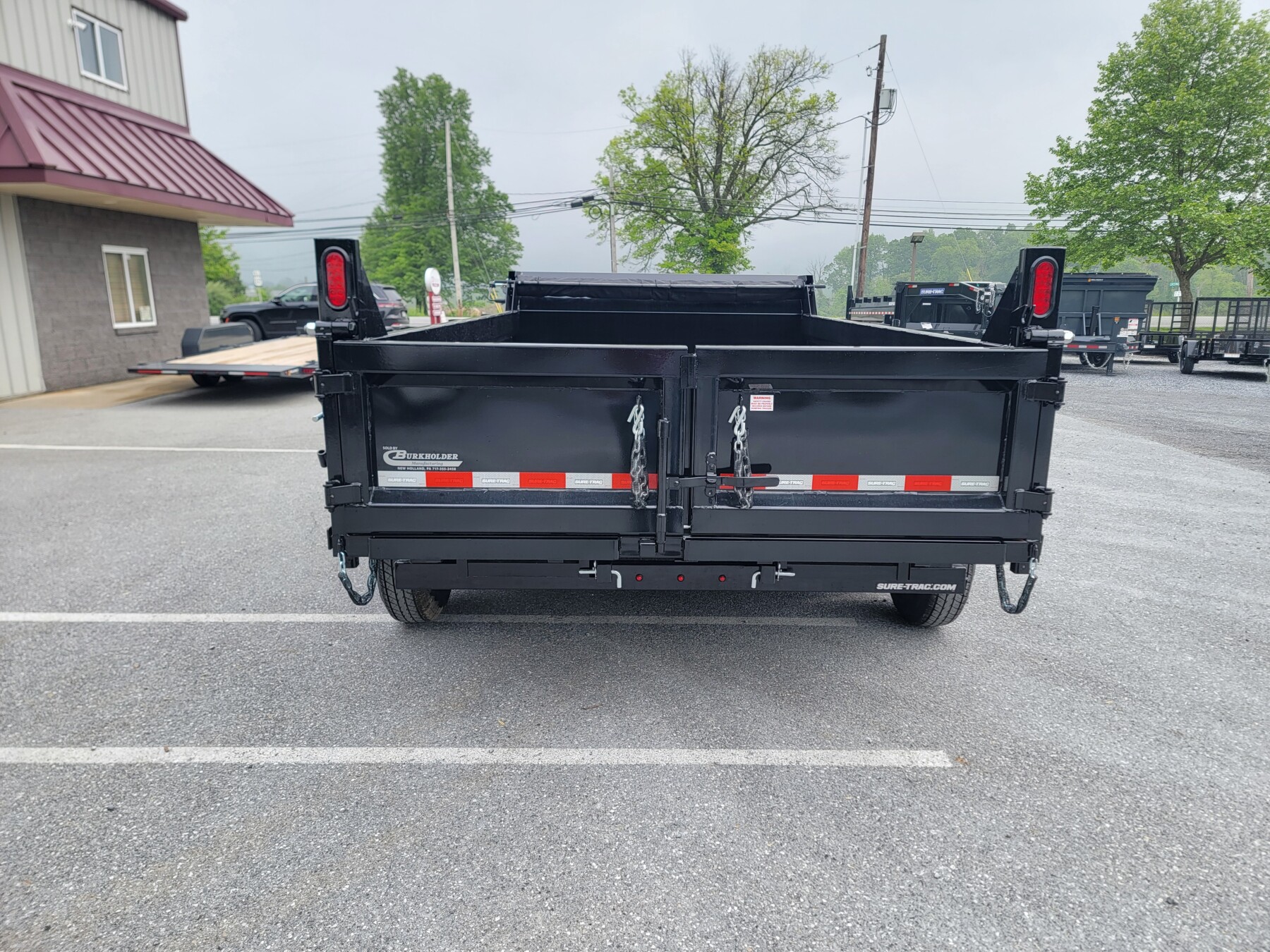

  • Combination Barn Door and Spreader Gate
  • Bead Blasted, Iron Phosphate Washed
  • Powder Coat Finish
  • Integrated Side Body Stiffening System
  • ST235/80R16 LRE Tires
  • Deep Cycle Marine Grade Battery Included
  • 7 Way RV Style Electrical Plug

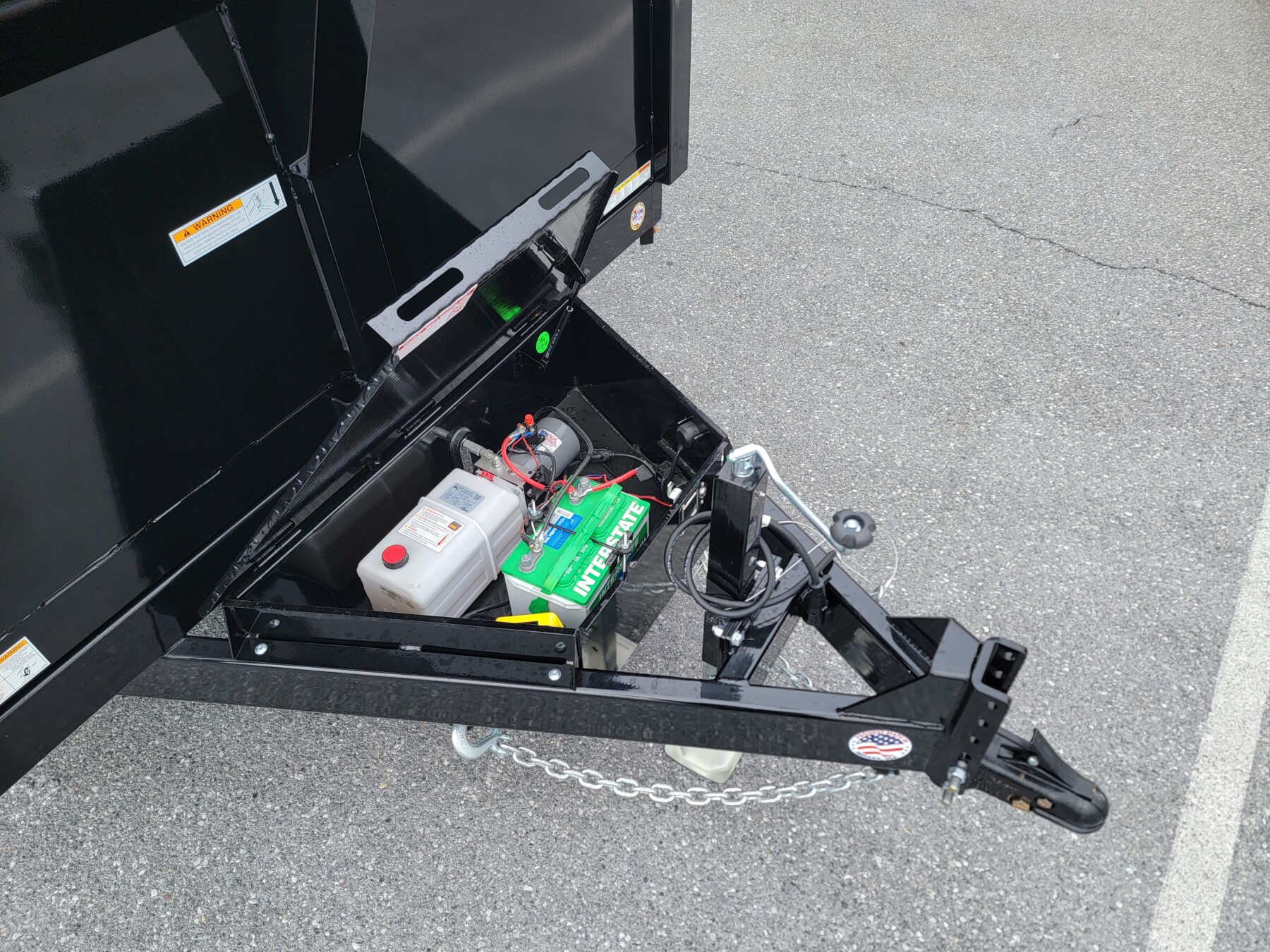

  • Tongue Mounted HD Control Box w/ key lock
  • LED Lights With Sealed Wiring Harness
  • 7K Drop Leg Set Back Jack on 12K and 14K Models
  • 12K Drop Leg Set Back Jack on 16K Models

Optional Features:

  • HD 12K Drop Leg Jack (Standard on 16K Models)
  • Rear Stabilizer Jacks (A Must have for Loading Heavy Equipment)
  • Pintle Eye (No Charge)
  • Mesh Tarp with Roller Kit
  • 48″ High Sides (Custom, Must be ordered)
  • Wireless Dump Remote
  • Aluminum Wheel Upgrade
