THE BACKBONE OF EVERY JOBSITE
Your crew’s tool trailer is a central part of every jobsite. That’s why Toolcrest doesn’t cut any corners when it comes to the construction of our trailers. No matter what model you choose, every
unit is built to the same standards that guarantee you the longest-lasting trailer in the field.
Toolcrest trailers are designed by contractors, for contractors, to get the job done on time and up to standards. Crowned for versatility and heavy duty construction, every trailer is equipped with exclusive features to help your crew gain efficiencies on the jobsite, while preserving the lifespan of your equipment.

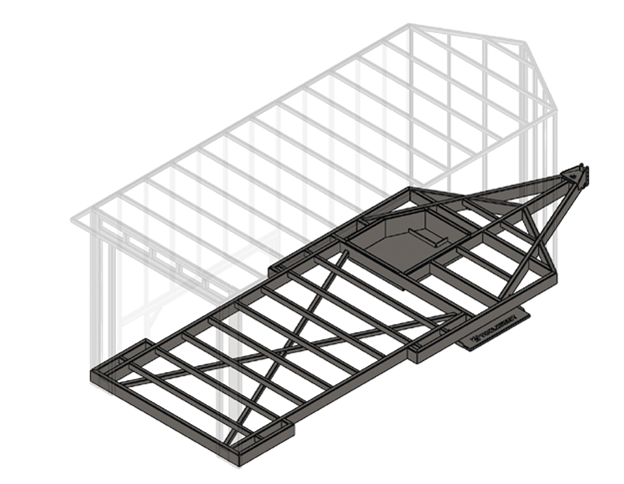

STEEL TUBE FRAME
Constructed of a steel tube frame to
have exceptional strength for a higher
hauling capacity and longevity of life.
X – BRACE DESIGN
Provides superior structural rigidity and
strength to resist twisting and swaying,
maintaining peak handling for years

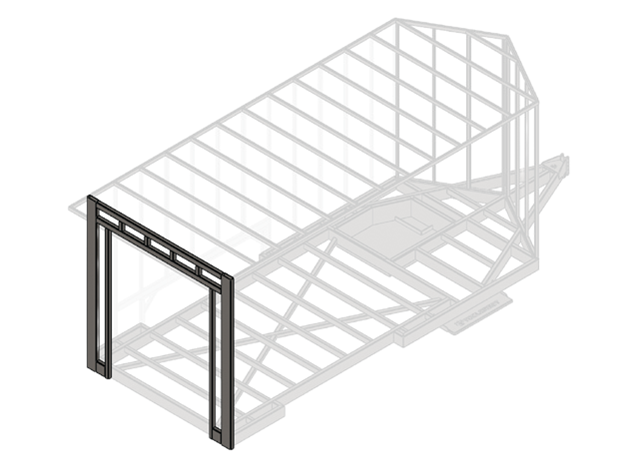

REINFORCED REAR HOOP
An extra steel hoop frame reinforces
corners to keep the trailer square and
protect your equipment from accidents.

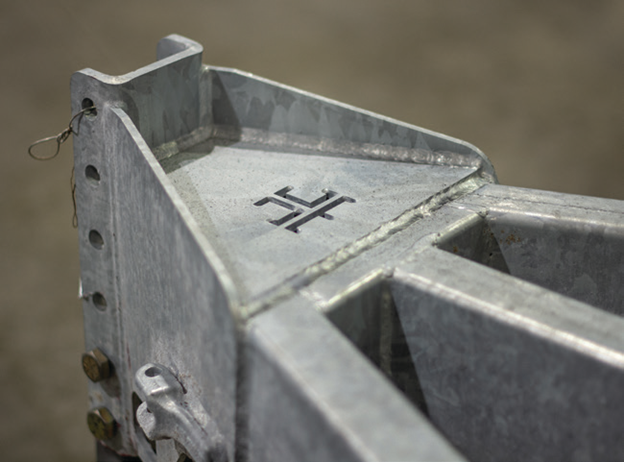

HOT-DIP GALVANIZED
A protective layer of zinc shields the
steel from rust and damage caused
by rocky debris or harsh elements.
V-NOSE CONSTRUCTION AERO DYNAMIC FIBERGLASS NOSE
(2) 5.2K LB TORSION AXLES 10,400 LB TOTAL CAPACITY
14 PLY TIRES
ST 235/80R16

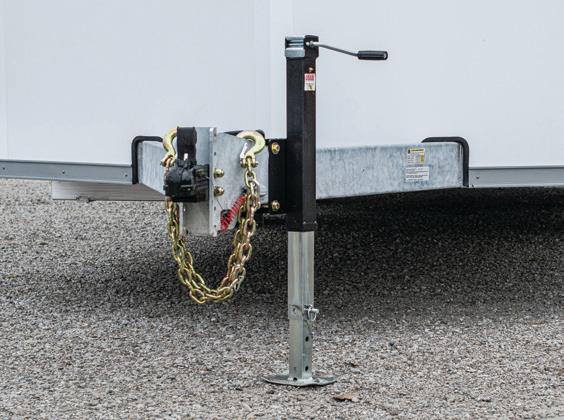

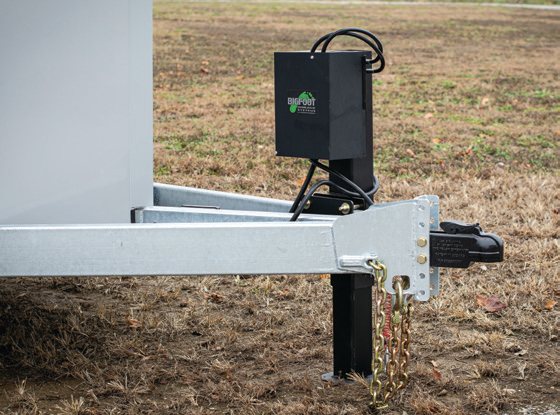

7K LB FRONT JACK
2 ½” SQ SIDE WIND CRANK JACK
OVERALL HEIGHT 8’ 6 ¼”

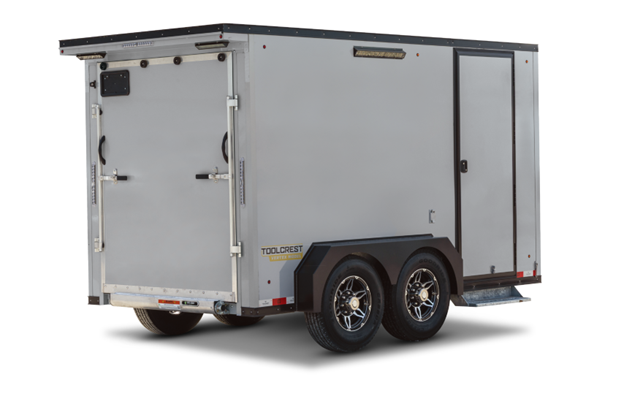

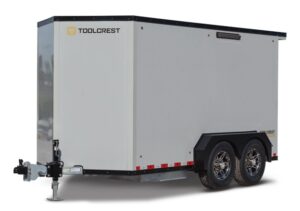

V 6 5 0 0 S P E C I F I C AT I O N S
INTERIOR WIDTH 70 ¼”
CEILING HEIGHT 6’ 8 ¼”
LENGTH OPTIONS 12’
COLOR OPTIONS
WHITE | GRAY
HEAVY DUTY FENDERS
⅛” GAUGE, WELDED ALUMINUM
OUTSIDE BOX WIDTH 76”
OVERALL EXT. WIDTH W/ FENDERS 7’ 11 ½”

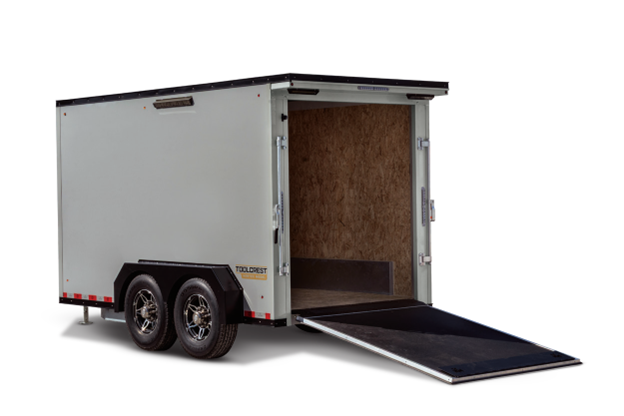

REAR RAMP DOOR OPENING 62 ½” X 74 ½”
REAR SWING DOOR OPENING 62 ½” X 74 ½”
SIDE DOOR OPENING 31 ¼” X 76 ⅞
5 YEAR JOBSITE WARRANTY
Every trailer is backed by our 5-Year Job Site
Warranty, covering structural integrity and
craftsmanship against defects in materials or
workmanship under normal jobsite use.
